5'' IPS 720*RGB*1280 HDMI TFT LCD Module with converter board for Secure Access
Secure Access Display Features
HDMI input: Easy connection to Raspberry Pi, Jetson Nano, industrial PCs.
High resolution: Clear display for facial recognition, QR scanning, UI elements.
IPS panel: Wide view, suitable for wall or kiosk mounting.
Capacitive touch: optional.
Cover glass: Optional, but if required, should be at least IP65.
Stable and durable: Reliable performance in 24/7, all the weather conditions.
| Item of general information | Contents |
| LCD Type | 5 inch(Diagonal) |
| Recommended Viewing Direction | within 80 degrees IPS |
| Display Resolution | 720 RGB (H) x 1280(V) |

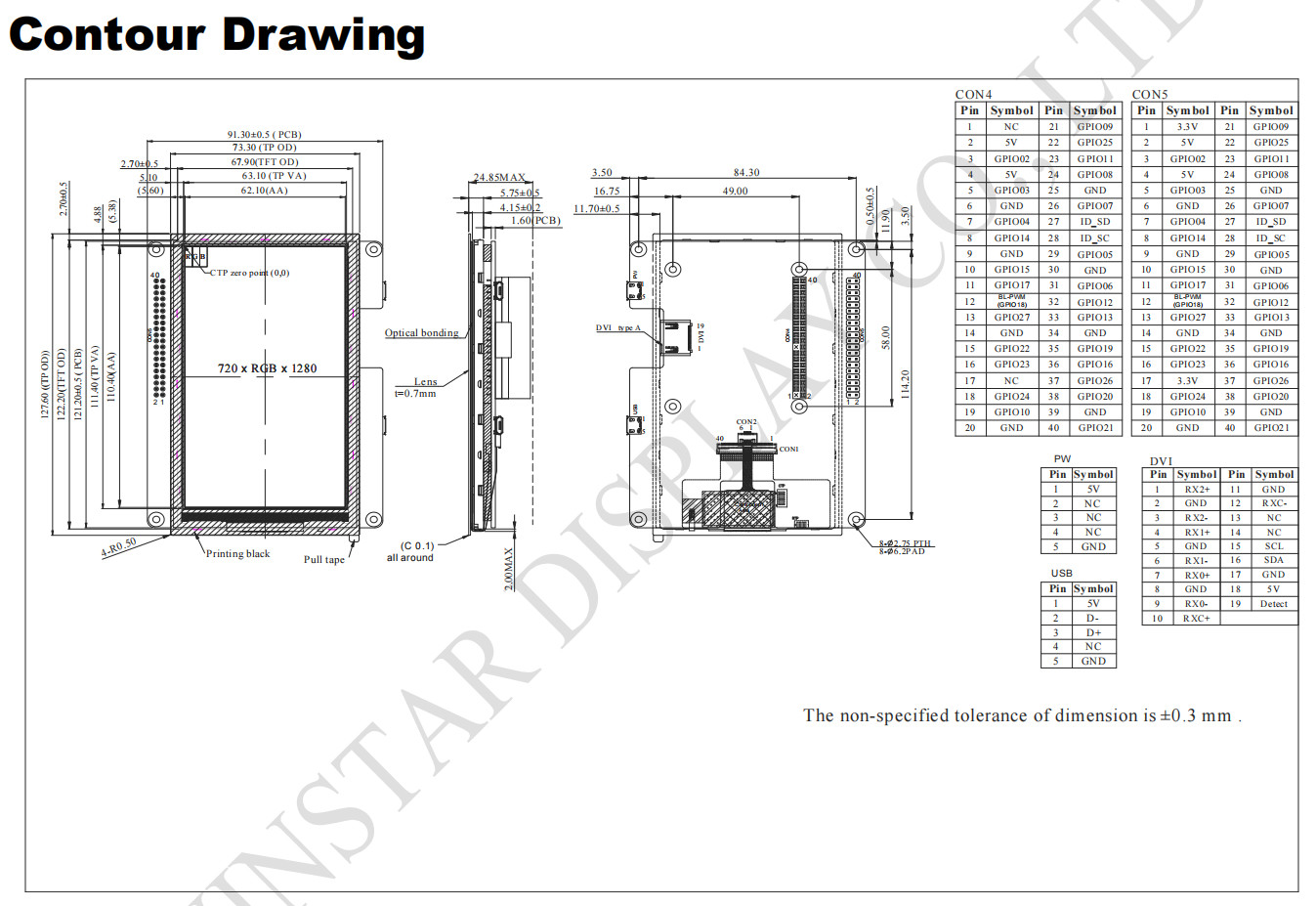

| Outline Dimension | 91.3*127.6*24.85 mm |
| Active area | 62.1(H) x 110.4(V)mm |
| Pixel pitch | 0.08625(H) x 0.08625(V)mm |
| Display Mode | Normally black/Transmissive |
| Pixel arrangement | RGB Vertical stripe |
| Certificate | CE, RoHS, SGS |
| Interface | HDMI |
| Operating Temp | -20º C~+70ºC |
| Storage Temp | -30º C~+80ºC |
Product parameters for Secure access display
Display technology: IPS TFT LCD
Regular size: 5-7''
Resolution: 1280*720 or better
Brightness: indoor>500cd/㎡, outdoor >800cd/㎡
Touch: PCAP
Working temperature: -20 to +70 degree C
Cover Panel: IP65, hardness 3H or 6H
Certification: CE/FCC/RoHS/ ISO
Supplier support: drawing and spec design, tech support, warranty 1 year at least.
Packaging & Shipping
Packaging : All the products are packed in right way to keep it safe.
Small sizes products: tray + carton
Big sizes: slot + carton.
We can design packages to meet customers' requirements.
Shipping : For small quantity orders: We often ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service.
For large quantity orders: we ship by buyer's cargo agent in China.
We can ship by air or sea transportation by our cargo agent.
Delivery Time: Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
FAQ
1. Can you provide some samples?
-Yes, we can offer samples for you and you just pay some delivery fee.
2. How can I get samples?
- Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea collect
3. How can I place an order?
- If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We will talk about more detailed information of your order. Any question, pls do not hestiate to contact us.
4. Can you design the lcd in acccordance with our demand?
-Sure, we have professional team to provide ODM&OEM service and any requirements, pls do not hestiate to tell me.
5. What is your payment method?
- We support make payment via TT/West Union/Paypal,50%-100% deposit in advance and balance before shipping as
