The Description of 3 inch TFT LCD
A 3-inch TFT LCD display refers to a display panel with a diagonal size of 3 inches that utilizes TFT (Thin-Film Transistor) technology. TFT LCD displays offer high-resolution visuals, vibrant colors, and fast response times. It features a Thin-Film-Transistor Display Module with a viewing direction of 3 O'clock. The active area is 65.52(W) X 36.84(H) Mm.And it provides a bright and clear image, making it a great choice for a variety of projects. It is a reliable and cost-effective solution for displaying information in a variety of settings.
The Datasheet of 3 inch TFT LCD
| Item of general information | Contents |
| LCD Type | 3.0Inch(Diagonal) TFT |
| Recommended Viewing Direction | 3 O'Clock |
| Dot pitch(W × H×T)(mm) | 0.06825(W)×0.1535(H) |
| Active area(mm) | 65.52(W)×36.84(H) |
| Pixel pitch (W × H) | 42.9(W)×75.0(H)×2.65(D) |
| Color arrangement | Delta RGB |
| Display Color | 16M |
| Backlight Type | Side-Light |
| Backlight Number of LED | 4 pcs |
| Luminance | 300(IF=20mA) cd/m2 |
| Uniformity | 80% |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |

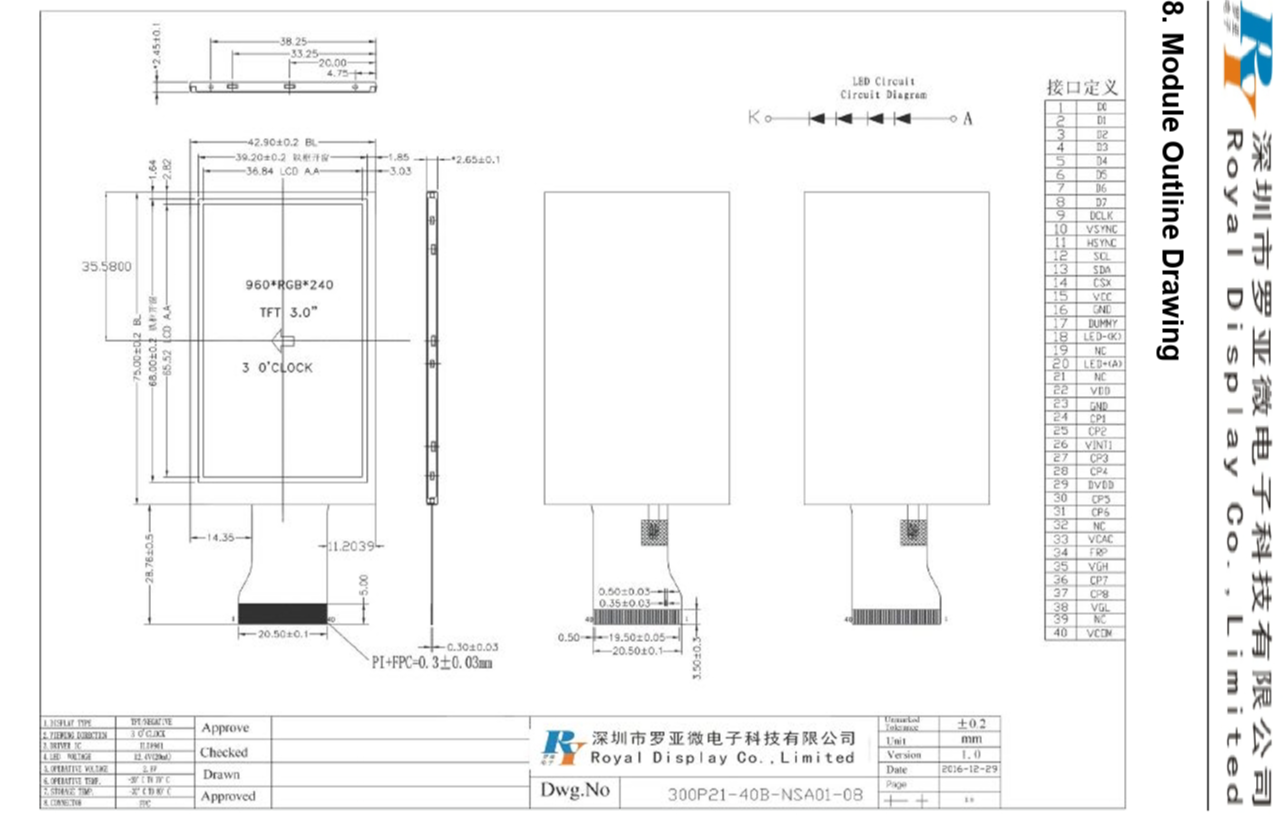

The Module Outline Drawing of 3 inch TFT LCD
The Features of 3 inch TFT LCD
1. Wide application range: It can be used normally in the temperature range from -20℃ to +70℃.
2. Good usage characteristics: low-voltage application, low driving voltage, solid-state use for improved safety and reliability.
3. Ultra-thin body: thin and flat, saving a lot of raw materials and space.
4. Low power consumption: it has low power consumption , saving a lot of energy.
5. Environmental protection: no radiation, no flicker, no harm to the user's health.
6. High quality: TFT-LCD industry technology is mature, and the yield rate of mass production reaches more than 90%.

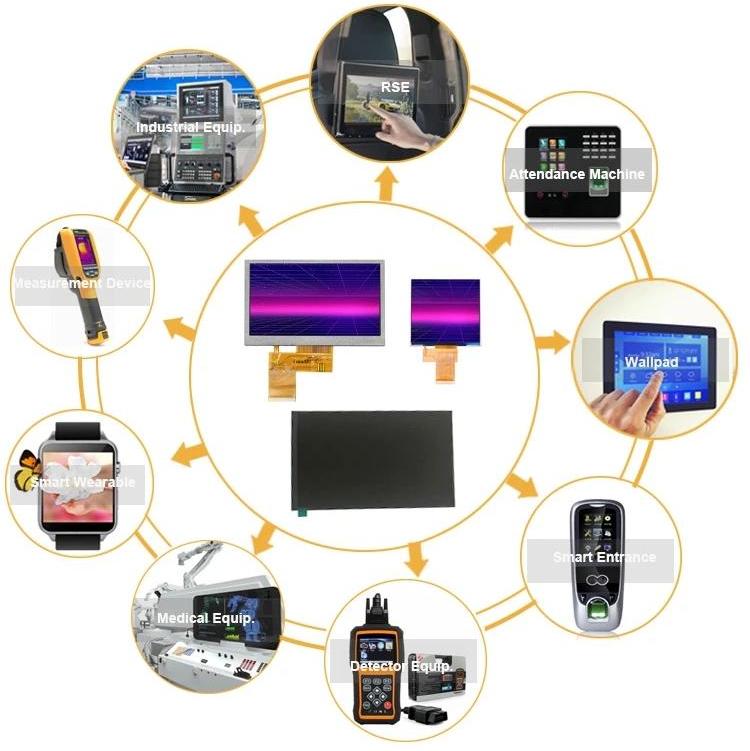

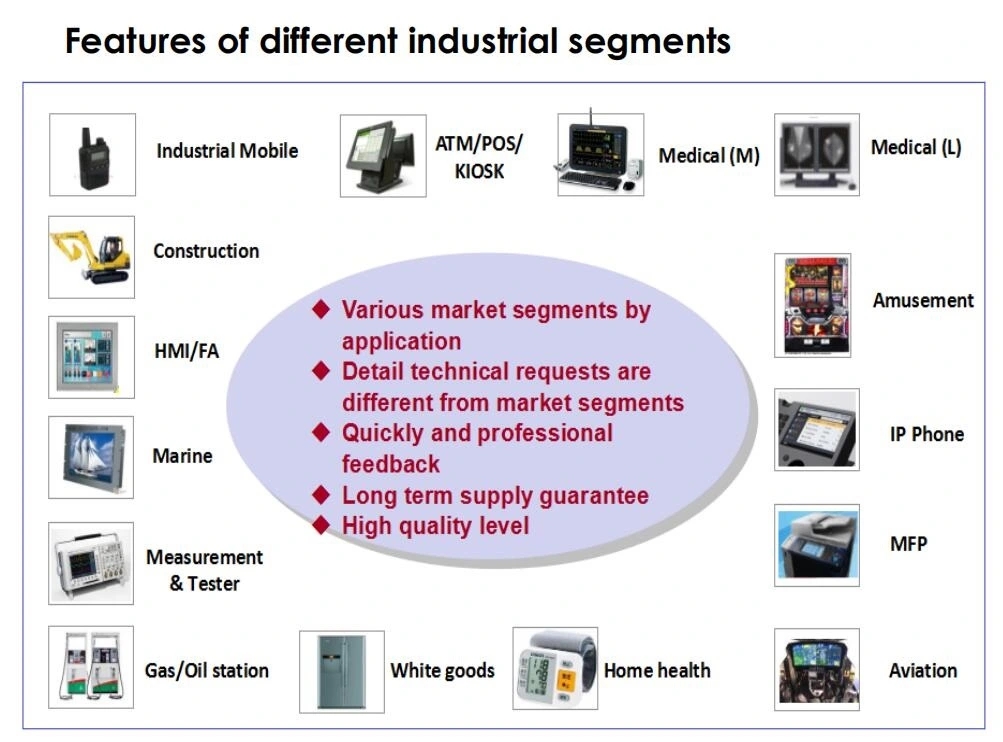

The Applications of 3 inch TFT LCD
The full name of TFT LCD screen is Thin Film Transistor Liquid Crystal Display, or TFT-LCD for short. It is a display device composed of thin film transistors and liquid crystals. It has good visual effects, high resolution, low power consumption, and low reflectivity. With the advantages of compact structure, non-radioactivity and easy maintenance, it is a display device widely used in various electronic equipment. A 3-inch Display is a small size TFT LCDand it is widely used in instrumentation, medical equipment, smart homes, communication equipment, household appliances, industrial control, consumer electronics, POS machines, computer color LCD screens, handheld devices and other fields.
Packing and Shipping
Packaging : All the products are packed in right way to keep it safe.
Small sizes products: tray + carton
Big sizes products: slot + carton.
We can design packages to meet customers' requirements.
Shipping : For small quantity orders: We often ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service.
For large quantity orders: we ship by buyer's cargo agent in China.
We can ship by air or sea transportation by our cargo agent.
Delivery Time: Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
FAQ
1. Do you have your own factory?
-Yes, we are an LCD factory with more than 10 years of production experience.
2. What is your payment method?
- We support make payment via TT/West Union/Paypal,50%-100% deposit in advance and balance before shipping as order amount.
3. What's the MOQ?
-Different products have different requirements, we accept small orders, please contact us for details.
4. How long is the lead time?
-Depends on your requirements and product quantity, generally 15 to 25 days.
5. Is there any quality guarantee?
-Yes, we have a quality Certification and provide one-year warranty service.
