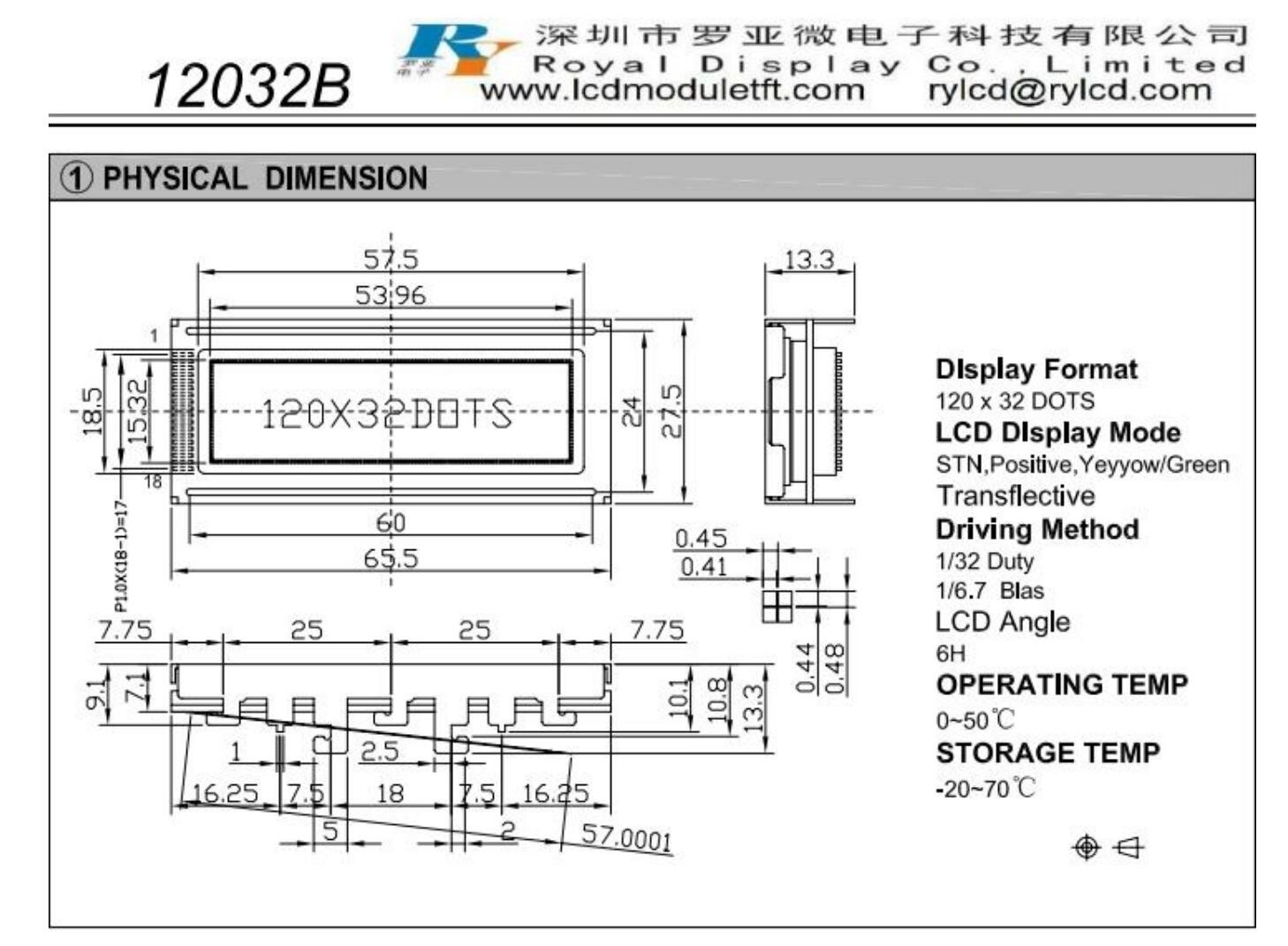

120*32 Graphic LCD Module Stn Positive Yellow/Green Transflective Sbn1661 with Backlight 6h
Product Description
A 120x32 graphic LCD refers to a type of liquid crystal display that has a resolution of 100 pixels in width by 64 pixels in height. This means that the LCD screen can display a total of 120 pixels horizontally and 32 pixels vertically.
The LCD operates by using an array of pixels, where each pixel can be individually controlled to display a specific color or state (usually on or off). The 120x32 resolution implies that there are 3840 (120 multiplied by 32) individual pixels on the screen.
Graphic LCDs are commonly used in various electronic devices, such as small information displays, wearable devices, and embedded systems, where a low-resolution graphical interface is required. They can show simple graphics, icons, text, and other visual elements.

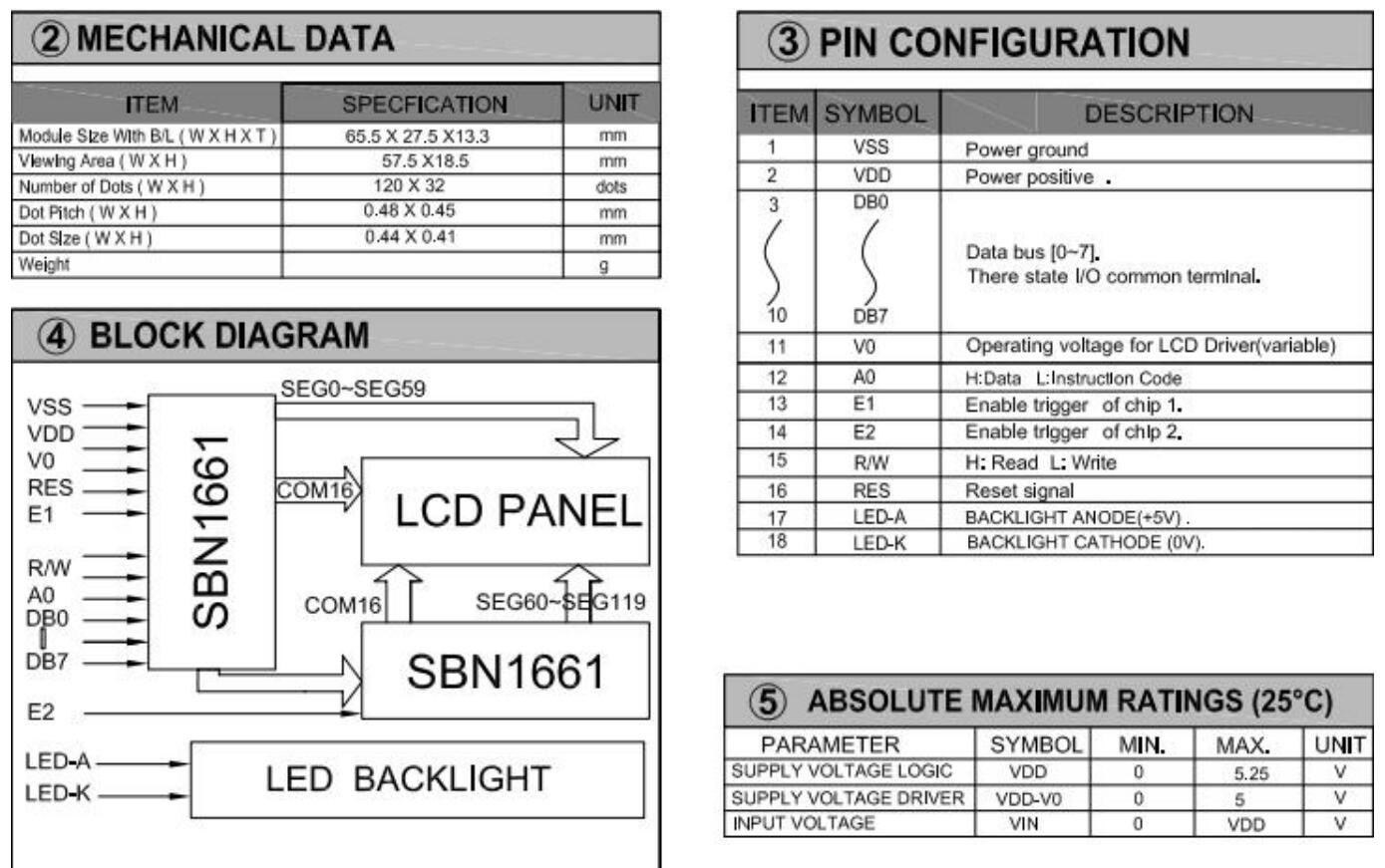

| Item | Specification |
| Product Name | 120*32 dots Graphic LCD Module |
| Model No. | RYP12032A |
| Dot Format | 120*32 |
| LCD Display Mode | STN/TN Monochrome, color optional |
| View Angel | 6H |
| Driving Method | 1/32 Duty, 1/6.7 Bias |
| Backlight | WHITE |
| Drive IC | SBN1661 |
| Operation Voltage(V) | 5.25V max |
| LCM technological conditions | RoHS |
| Operating Temp | 0 ~+50ºC |
| Storage Temp | -20 ~+70ºC |
Product Features
A 120*32 dots graphic LCD module offers several advantages for applications that require custom graphics and user interface elements.
*High Resolution: It provides a relatively high pixel density, allowing for the display of detailed graphics and images. This can enhance the visual appeal and clarity of the displayed content.
*Customization: A graphic LCD module allows for the individual control of each pixel, enabling the creation of custom graphics, icons, and user interface elements.
*Versatility: The ability to display custom graphics and images makes a 100x64 graphic LCD module suitable for a wide range of applications.
*User Interaction: The display of custom graphics and user interface elements allows for intuitive user interaction. It enables the presentation of buttons, menus, sliders, and other interactive elements, enhancing user experience and usability.
*Information Display: The high resolution enables the presentation of detailed information, such as graphs, charts, and data plots.
*Low Power Consumption: Graphic LCD modules generally consume less power compared to other display technologies like TFT-LCDs.
*Compact Size: This module is available in compact form factors, making it suitable for applications with limited space constraints.
*Cost-Effective: Graphic LCD modules are often more cost-effective compared to higher-resolution displays like TFT-LCDs.
Our Service
1. Best Quality Control : Every LCD tested with special instruments or main boards before delivery to ensure working.
2. Correct Packaging Way: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Multiple Payment Methods: T/ T, Western Union,L/ C, PayPal.
4. Reliable Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Professional Customized Service: Professional team provide OEM&ODM service.
6. Competitive Price: Give you a direct factory price.
7. Better After-sales Service: Long for one year warranty.
FAQs
1.Q: Are you manufactory or trade company?
A: We are manufactory in China. Our factory located in Dongguan, and office located in Shenzhen
2.Q: How can I get the samples?
A: Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea colle
3.Q: Can you design the lcd in acccordance with our demand?
A:Sure.We have professional team to meet all your demand.
4.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1.Product information-Quantity,part number
2.Delivery time required.
3.Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4.Forwarder's contact details if you have any in China.
5.Q:How long of mass production ?
A: 25-30 business days. It depends on different order quantities and part number.
