N-Pos COG Graphic LCD Module STN Gray RYG12864Z 128*64 dots , 3.3V Power supply

  • 1
  • 2
  • 3

Brand Name : ROYAL DISPLAY

Model Number : RYG12864Z

Certification : SGS ROHS

Place of Origin : CHINA

MOQ : 500pcs

Supply Ability : 300k/Month

Delivery Time : 25~28 Working Days

Packaging Details : 420pcs/CTN 14Kg L45*W36*H32CM

Product Name : N-Pos COG Graphic LCD Module STN Gray RYG12864Z 128*64 dots , 3.3V Power supply

Model No. : RYG12864Z

Dot Format : 128x64

Viewing Angle : 6 O' clock

LED Backlight : White

Driver IC : ST7567

Price : Negotiable

Contact Now

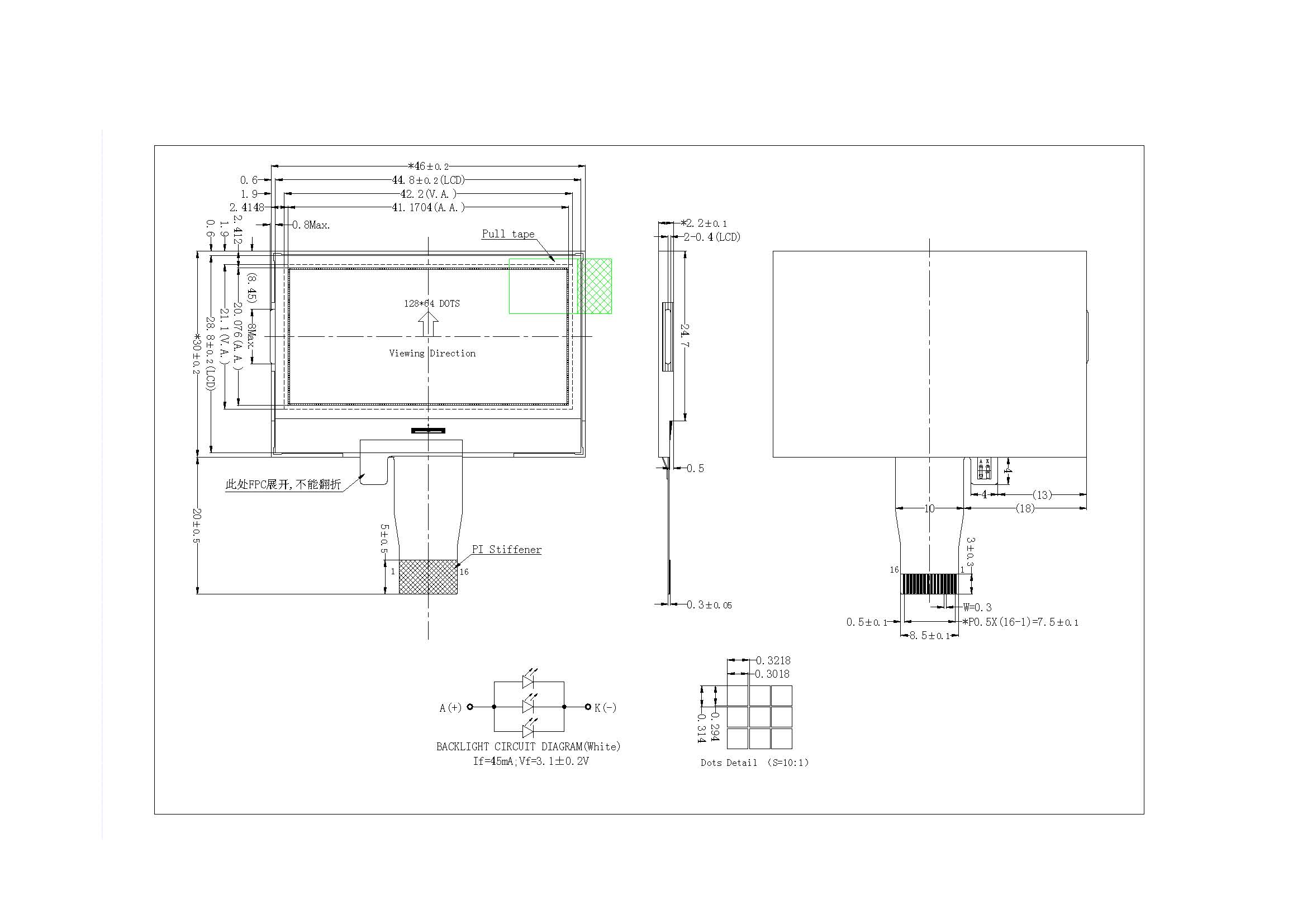

N-Pos COG Graphic LCD Module STN Gray RYG12864Z 128*64 dots , 3.3V Power supply

  1. COG Graphic LCD Module
  2. Dots Format , 128x64
  3. Controller , ST7567 OR EQUIV
  4. STN-Gray, Blue,DFSTN-Negative.FSTN-Postive
  5. LED Back Light , White , Red , Amber .
  6. Used for N-Pos
  7. CN1 SYMBOL CN1 SYMBOL
    1 TG-IN-1 10 D7(SDA)
    2 TG-OUT-2 11 D6(SCL)
    3 LED-A 12 A0
    4 LED-K 13 RSTB
    5 VG 14 CSB
    6 XV0 15 TG-IN-2
    7 V0 TG-OUT-2
    8 VSS
    9

    VDD

    N-Pos COG Graphic LCD Module STN Gray RYG12864Z 128*64 dots , 3.3V Power supply

Typical Applications:

N-Pos Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Features:
Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range
